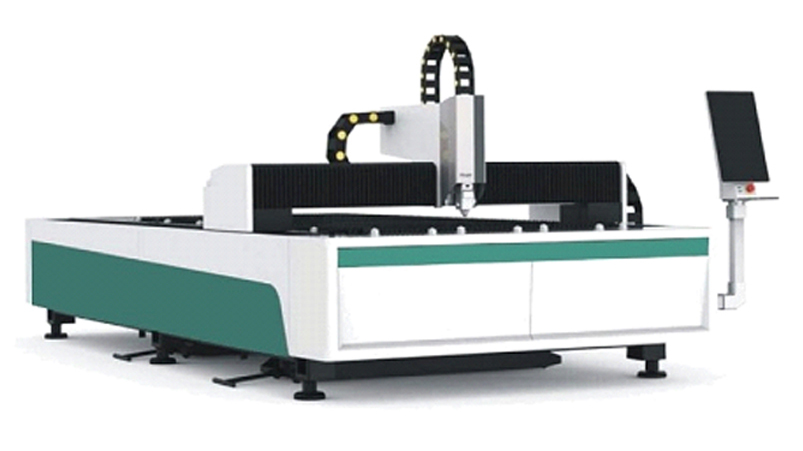

| Machine Model - JD1530 | |
|---|---|
| Description | Specification |
| Laser type | Fiber Laser |
| Laser working medium | Fiber |
| Laser wavelength | 1064nm |
| Rated output power | 1000W |
| X-axis stroke | 1500mm |
| Y-axis stroke | 3000mm |
| Z axis travel | 150mm |
| Effective cutting range of the plate | 1500*3000mm |
| Positioning accuracy | 0.03mm/m |
| Repeat positioning accuracy | ±0.02mm/m |
| Maximum Cutting Speed | 15m/min |
| Maximum empty line speed | 80m/min |
| Acceleration Speed | 0.8 G |
| Cooling | Optional: 1kW Chiller |
| Power rating parameters | AC 230/380V / 50Hz |
| Applicable Material | Stainless Steel, Galvanized Sheet and others |
| Gas | N2 - Stainless Steel, Alumunium, Brass |
| O2- Carbon Steel | |
| Equipment power consumption | 10kw |
| Segment Description | ||
|---|---|---|
| Segment | Description | Specification |
| Fiber laser | Output Power | 1000/1500/3000 W |
| Laser head | Laser Head Model | Raytool,BM109 |
| Laser Source | Laser Source Model | Max MFSC 1000x, (Optional: Raycus, IPG) |
| Machine tool | Bed structure | Steel Sq. Pipes |
| X/Y rack and pinion | 25mm in Y-Axis Korean | |
| 20mm in X,Z Axis Korean | ||
| Z-axis ball screw | 25mm PMI | |
| X/Y/Z axis guide | 25mm HIWIN | |
| Pneumatic Components | SMC, Janatics | |
| Electrical components | Schneider & Others | |
| Servo Motor & Driver | Fuji Electric | |
| Reducer | BONFIOGIOLI or Shimpo | |
| Chiller | Optional: Hexacool/S&A/Hans | |
| Exhaust | Optional: Blower | |
| Software | Fiber cutting software / Controller | Shanghai Cypcut 2000 |
| Machine Information | |
|---|---|
 | BM109 Ray tools Cutting HeadAuto focus to improve piercing and cutting efficiency. |
 | Max Fiber Laser SourceExcellent Material Processing Performance |
 | Precision X/Y/Z rack and pinionPrecision Korean Rack for High precision, long life, accuracy |
 | Hiwin Guide WaysImported High precision, hardness, accuracy to attain 0.03mm/m |
 | Ball Loading AssemblyEasy and Smooth material loading and unloading of material to working area |
 | Blades Working TableLong life, less friction, easy loading and unloading of sheet |
 | Auto Oil PumpLubricates Guide ways and blocks automatically |
 | Waste Material Collecting TrayEasy to clean, easy to move |
 | ChillerBuilt in water purifier for clear water and rust proof. |
 | Auxiliary GasN2 - For cutting Stainless Steel with gas purity above 99.6% |
